Syphone

"A syphone is a straight forward device used to shield the pressure gauge from hot substances like steam. In order to prevent live steam from coming into direct contact with instruments, they are typically linked between process taps and pressure gauges. Syphons also have strong heat dissipation qualities. They protect pressure gauges from intense heat that may otherwise impair their performance. Syphon Unveiled: Enhancing Precision and Safety in Temperature Control "
Introduction :-
In the realm of industrial processes, precision and safety are paramount. Temperature control is a critical aspect of this endeavor, and syphon are the unsung heroes that ensure accuracy while safeguarding instruments. In this blog, we will explore syphons, specifically pigtail, coil, and U-type syphons, examining their unique features and the benefits they bring to various industries.

Types of syphons

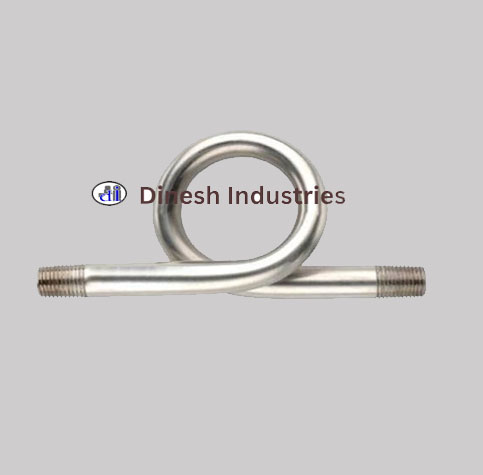

1. Pigtail Syphons: the most prevalent types in the industry. Their design consists of a coiled tube, often made of materials like stainless steel. Pigtail syphons serve a crucial purpose: protecting pressure instruments, such as pressure gauges, from the damaging effects of high temperatures and direct contact with hot fluids. The coiled structure allows for expansion and contraction, preserving the instrument's integrity.

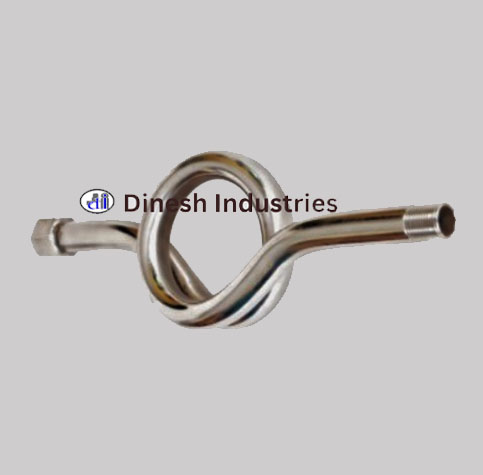

2. Coil Syphons: Coil syphons share the same fundamental design as pigtail syphons. Their coiled structure remains ideal for safeguarding pressure instruments. However, the term "coil syphons" is sometimes used interchangeably with pigtail syphons in industry jargon.

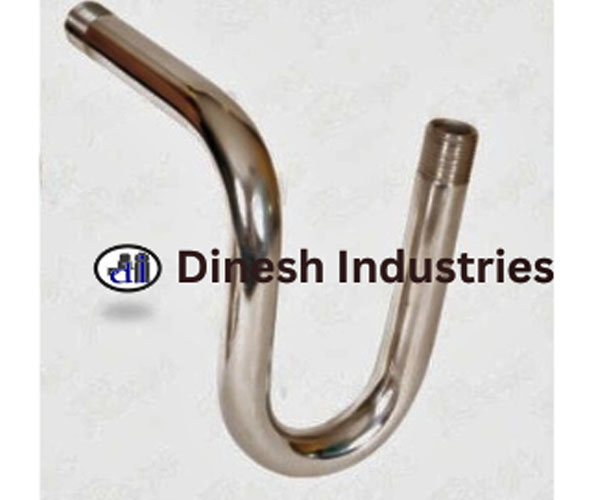

3. U-Type Syphons: U-type syphons, as the name suggests, possess a distinctive U-shaped design. These syphons are deployed primarily to shield instruments from the harsh conditions of steam or high-temperature gases. U-type syphons are remarkably versatile and can be installed in various orientations, rendering them suitable for a wide array of applications.

Features of syphons

To truly appreciate the value of syphons in industrial processes, it's essential to understand their key features: 1. Temperature Control: The primary role of syphons is temperature control. They act as a barrier between the process fluid and temperature-measuring instruments. By preventing direct contact with high-temperature fluids or steam, syphons insulate and help maintain accurate temperature readings. 2. Pressure Equalization: Syphons facilitate pressure equalization between the instrument and the process, ensuring that the instrument is not subjected to sudden pressure fluctuations. This feature is critical for instrument longevity and accuracy. 3. Versatility: Syphons are available in various materials and configurations, enhancing their adaptability. Whether it's the measurement of corrosive chemicals or high-pressure steam, there is a syphon tailored for the job. 4. Ease of Installation: Many syphons are designed for easy installation, featuring threaded, flanged, or sanitary connections. This simplifies the integration process into existing systems, reducing downtime and installation costs. 5. Durability: Constructed from materials like stainless steel, syphons are built to withstand the harshest industrial environments. Their resistance to corrosion and high temperatures ensures a long service life, ultimately reducing maintenance costs.

Benefits of Using Syphons

The application of syphons in industrial processes yields several tangible benefits: 1. Instrument Protection: Foremost among these benefits is the protection syphons offer to temperature and pressure instruments. By isolating these instruments from harsh process conditions, syphons help prevent damage, ensuring accurate readings over time. 2. Safety Enhancement: Syphons contribute significantly to the overall safety of industrial processes. By mitigating the risk of instrument failure due to extreme temperatures or pressure fluctuations, they help prevent accidents and ensure worker safety. 3. Precision and Accuracy: Many industrial processes require precise temperature and pressure measurements for quality control and process optimization. Syphons play a crucial role in achieving and maintaining this accuracy, a vital aspect of ensuring product quality. 4. Cost Savings: While syphons may seem like relatively small components in a larger industrial system, their impact on instrument longevity and accuracy can lead to substantial cost savings. Fewer instrument replacements and calibrations translate to reduced maintenance and downtime expenses. 5. Compliance: In industries with stringent regulatory requirements, such as pharmaceuticals and food processing, This is essential to meet quality and safety standards and avoid costly regulatory penalties. 6. Versatile Applications: Syphons find applications in a wide range of industries, from chemical processing to energy generation. Their adaptability makes them a valuable asset in various contexts, showcasing their versatility.

Conclusion

In conclusion, syphons – including pigtail, coil, and U-type syphons – are indispensable in industrial processes that rely on precise temperature and pressure measurements. These unsung heroes protect instruments, ensure safety, and maintain process accuracy across various industries. Their versatility, ease of installation, and durability make them an invaluable asset, contributing to enhanced safety, efficiency, and cost savings. The next time you encounter a complex industrial process, remember the vital role that syphons play, working diligently behind the scenes to ensure precision and safety.
